ScanPOS

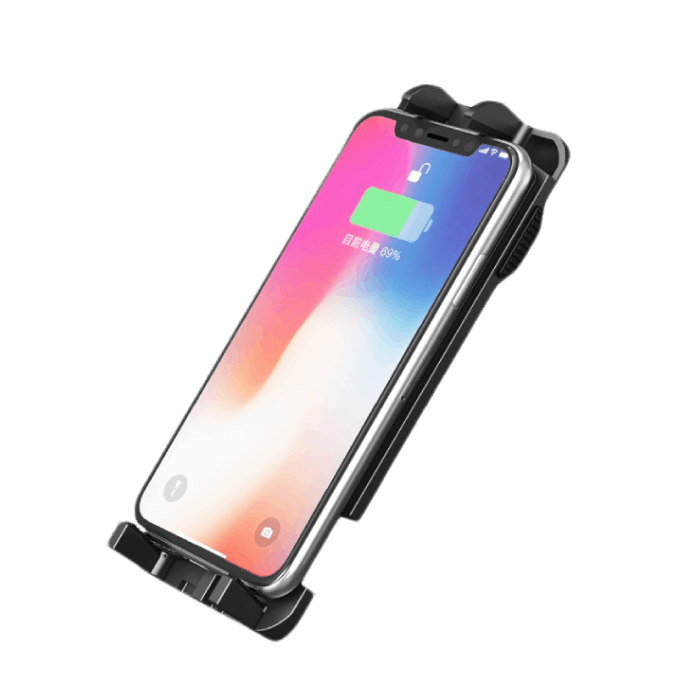

Mobile Phone Sled

  • Rugged Industrial Grade Housing
  • Best in Class 752*468 CMOS Sensor
  • Encompasses any Smartphone from 5” to 6.45”
  • Communication Distance up to 30 to 100 mts
  • 16Mb Memory that can store 100K Barcodes
  • 1000Mah Battery with 8hours non-stop scanning
  • Bluetooth USB Receiver Included
  • Fast Charging in 1.5hr
  • Bluetooth application to connect with multiple devices included

Interface

  • Bluetooth USB Receiver Included

Specifications

CPU Arm CPU 1Ghz, 16M Flash
Scan Engine High performance CMOS Engine 752*480 pixel
Scanning Method Trigger, Continuous , Auto-sense
Decode capability All 2D & 1D Barcodes
Min Resolution 4mil(Code39,PCS 0.9)
Prompt mode Buzzer, indicator light
Reading Range 5mil 40-150mm
8mil 60-120mm
13mil 20-260mm
15mil 30-280mm
20mil 40-320mm 100% UPC 40-400mm
Wireless Mode 2.4G RF , Bluetooth
Communication Distance 30 to 100mts
Battery 1000Mah
Memory Storage 16Mb, Storage up to 50K Barcodes
Applications
POS ScanPOS Sled + Smart Phone + Mobile Printer + POS Software
PDA ScanPOS Sled + Smart Phone + Software
Barcode Scanning ScanPOS Sled connected to PC by USB Receiver
Label Printing ScanPOS Sled + Smart Phone + Bluetooth Label Printer
