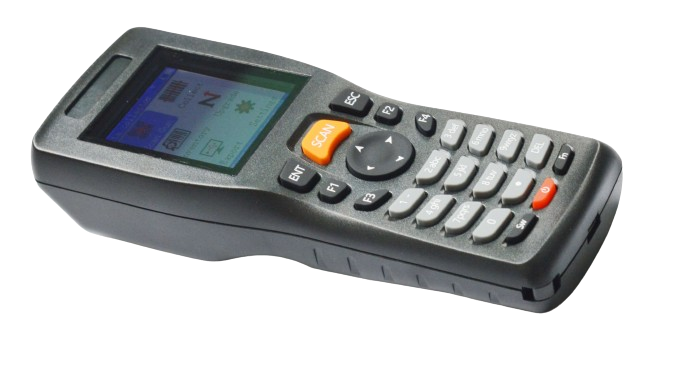

PDT3000 DC

Wireless Data Collector

Configuration


Features:

  • 32-bit high-speed ARM
  • Reads all 2D/1D Barcodes, Omni Directional Scanning
  • Reads 2D Barcodes above 5mil
  • White LED, Red Aimer
  • Trigger or Continuous Scanning Mode
  • Reads barcodes from LCD/Tablet/Smartphone’s
  • Communication mode: 2.4G RF
  • Communication Distance: up to 50mt
  • Memory Storage – 4Mb
  • Stores up to 30k barcodes
  • Battery Capacity: 750Mah

Specifications

CPU ARM Cortex-M3,32-bit
Scan Engine CMOS, 640*480, Red Aimer, White Light
Scanning Method Trigger, Continuous
Decode capability All 2D & 1D Barcodes
Prompt mode Buzzer, indicator light
Scan Width 32cm
Roll / Pitch / Yaw 30°, 65°, 45°
Symbol & Density

4milCode39
6.67milPDF417
10milDataMatrix
13milEAN-13
20milQRCode

 Range

40-90mm
30-130mm
50-90mm
50-200mm
25-240mm
Bluetooth version 4.2
Communication Distance Up
Battery Built-in , 750Mah
Memory Storage 4Mb, Storage up to 30K Barcodes
