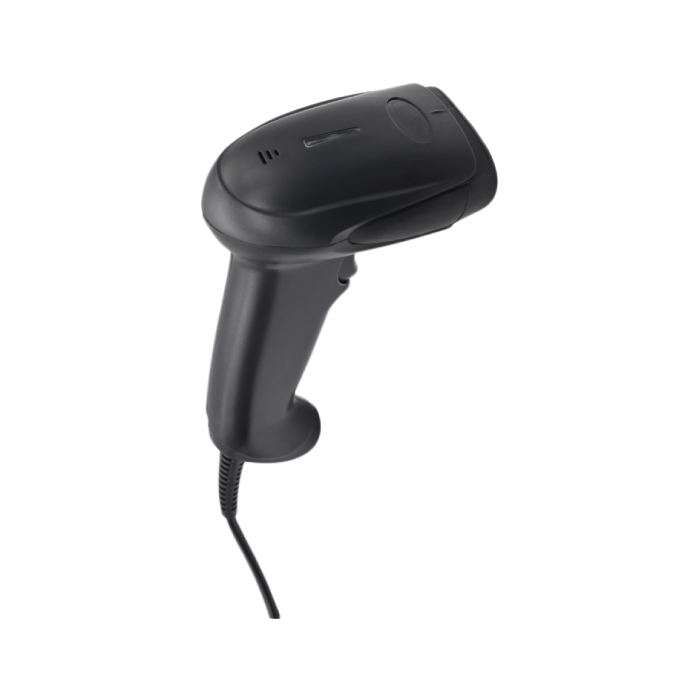

PS2000
CCD Barcode Scanner
| Light Source | 622 nm ~ 628 nm Visible red light3 |
|---|---|
| Scanning Method | Trigger, Continuous |
| Scan rate | 500 scans per second |
| Resolution | 5 to 630mm |
| Decode capability |
UPC/EAN, UPC/EAN with supplemental, UCC/EAN 128, Code 39, Code 39 Full ASC‖, Code 39 Tri Optics, Code 128, Code 128 Full ASC‖, Codabar, interleaved 2 of 5, Discrete 2 of 5, code 93, MSI, Code 11, RSS variants, Chinese 2 of 5 |
| Prompt mode | Buzzer, indicator light |
| Scan Angle | ±65°±42° (Left and right, front and back, rotation) |
| Error rate | 1/3,000,000 |
| Anti-shock | 1.8meter |
| Input Voltage | 5VDC±0.25V |
| Interfaces supported | USB or RS232 |
